Compatibility Table for Ecowitt Products

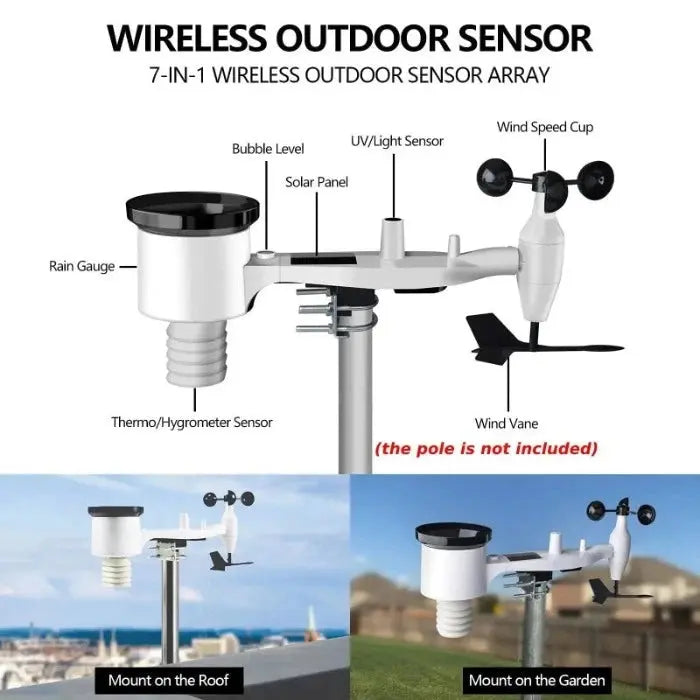

WS69 7-in-1 Wireless Outdoor Sensor
WS69 outdoor weather sensor equips with Thermo-hygrometer / Rain Gauge / Wind Speed Sensor/ Wind Direction Sensor / Light and UV sensor / Solar panel.

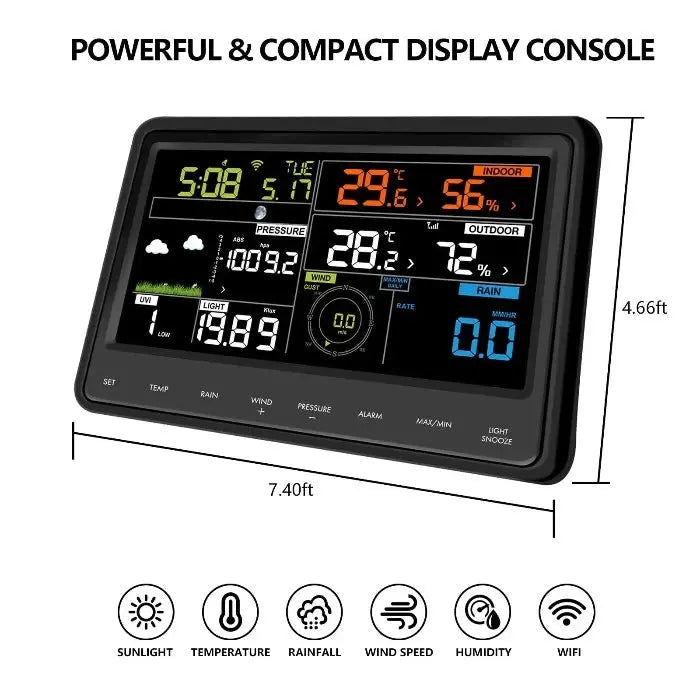

WS2910_C Color LCD Display Console
WS2910_C Console screen can display : Time / Moon phase / Barometric Pressure / Weather forecast / UV index / Solar Radiation(Light) / Wind speed / Wind direction / MAX or MIN Daily / Rainfall / Outdoor temperature(℃or℉) / Outdoor humidity / RF icon / Indoor humidity / Indoor temperature(℃or℉) / Date / WIFI icon
Powered by 3 pcs AAA batteries (not included) or DC power adaptor.
Power Type
WS2910 not only can be powered by 2 pcs AA batteries(NOT included), but also can be powered by solar energy. Easy to mount. Wireless transmission distance is up to 100m/33ft. Sensor reporting interval is 16 seconds.

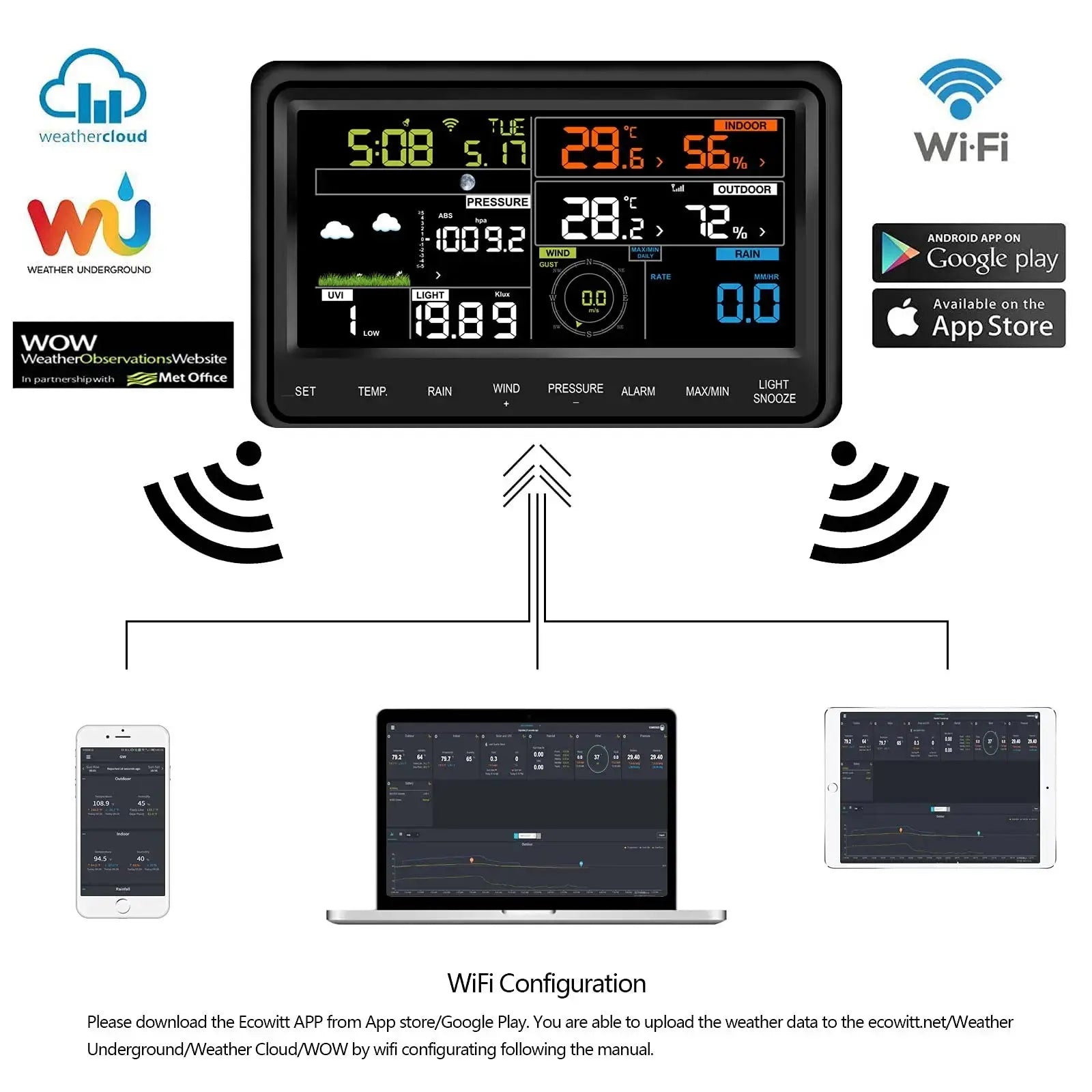

Support Uploading to Internet
When finished Wi-Fi configuration, WS2910 console is capable of sending your sensor data to select internet-based weather services, such as Ecowitt Weather, Weather Underground, Weather Cloud, Weather Observation Website (WOW) or Customized Website(Supports uploading to your customized website, if the website has the same protocol with Wunderground or Ecowitt).
Specifications:
|
WS69 7-in-1 weather sensor |
Transmission distance |
100 m (330 ft) in open field |
|
RF frequency |
North America: 915MHz; Europe: 868MHz; Other areas: 433MHz |
|
|
Temperature range |
-40°C – 60°C (-40°F - 140°F) |
|
|
Temperature accuracy |
± 1°C, or ± 2°F |
|
|
Temperature resolution |
0.1°C, or 0.1°F |
|
|
Humidity range |
10% ~ 99% |
|
|
Humidity accuracy |
± 5% |
|
|
Humidity resolution |
1% |
|
|
Rain volume display range |
0 – 6000 mm |
|
|
Rain volume accuracy |
± 10% |
|
|
Rain volume resolution |
0.3 mm (for volume < 1,000mm) 1 mm (for volume ≥ 1,000 mm), or 0.01 in (for volume < 100 in) 1 mm (for volume ≥ 100 in) |
|
|
Wind speed range |
0 – 50 m/s (0 ~ 100 mph) |
|
|
Wind speed accuracy |
± 1 m/s (speed < 5 m/s) ± 10% (speed ≥ 5 m/s), or ± 0.1 mph (speed < 11 mph) ± 10% (speed ≥11 mph) |
|
|
UV-Index range |
0 - 15 |
|
|
Light range |
0 – 200 kLux |
|
|
Light accuracy |
± 15% |
|
|
Sensor reporting interval |
16 seconds |
|
|
7-in-1 weather sensor |
Solar panel (built-in) |
|
|
7-in-1 weather sensor (backup) |
2 x AA 1.5V LR6 Alkaline (not included), or 2 x AA 1.5V Lithium battery (not included) |
|
WS2910_C Display/Gateway/Console |
Temperature Range |
-10°C —— 60°C (14°F —— 140°F) |
|
Temperature Resolution |
0.1°C, or 0.1°F |
|
|
Humidity Range |
10% ~ 99% |
|
|
Humidity Resolution |
1% |
|
|
Barometric Pressure Range |
700-1100hPa (20.67-32.5inHg) |
|
|
Barometric Pressure Accuracy |
± 3 hPa in 700 – 1,100 hPa range |
|
|
Barometric Pressure Resolution |
0.1 hPa (0.01 inHg) |
|
|
Alarm Duration |
120 sec |
|
|
Sensor Reporting Interval |
60s |
|
|
Base Station/Console |
5V DC adaptor (included), Power Consumption:0.5 Watts (1.25 Watts during Wi-Fi configuration mode) |
|
|
Base Station/Console |
3 x AAA batteries (not included) |
Package List:
1 x Color Display Console
1 x Outdoor Sensor Body with built-in: Thermo-hygrometer / Rain Gauge / Wind Speed Sensor/ Wind Direction Sensor, Light and UV sensor, Solar panel
1 x Wind speed cups (to be attached to outdoor sensor body)
1 x Wind vane (to be attached to outdoor sensor body)
2 x U-Bolts for mounting on a pole
4 x Threaded nuts for U-Bolts (M6 size)
1 x Metal mounting plate to be used with U-Bolts
1 x Wrench for M6 bolts
1 x AC adapter
1 x User manual
(Rods in the picture are not included)
Equip yourself with a reliable weapon against unpredictable weather with the Ecowitt WS2910 Wi-Fi Weather Station. This solar-powered station is perfect for greenhouse control systems, giving you the ability to monitor weather conditions from a safe and comfortable distance. With its 7-in-1 wireless outdoor sensor, you can monitor temperature, humidity, wind speed, wind direction, rainfall, UV, and solar radiation.
The Ecowitt WS2910 boasts of easy installation and user-friendly interface. The colorful display console provides easy access to current weather data, as well as 24-hour and 7-day historical data. With support for WiFi, you can effortlessly connect the Ecowitt WS2910 to your home network and view weather data on your smartphone, tablet, or computer, even when you're far from home.
The accuracy and real-time data provided by the Ecowitt WS2910 make it the ideal choice for gardeners, farmers, and anyone needing precise weather data. As a solar-powered device, it's also kind to the environment and your electricity bill. Install the Ecowitt WS2910 WiFi Weather Station in your greenhouse or yard today, and enjoy weather forecasting made smart, easy, and efficient.
